NAS60K3-FT Fast DC Wall box Charger 60kW CCS/ CHAdeMO/ DC, 22kW AC

Introduction

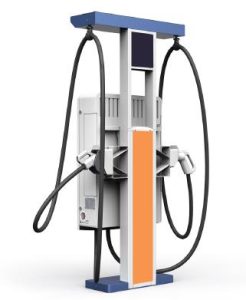

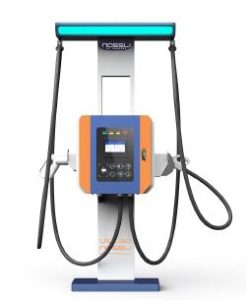

NAS60K3-FT Fast DC charger is specially designed with wall mounted and pedestal installations and fully compatible with CCS/
CHAdeMO /AC Type 2 EV charging standard. It features a highly integrated and compact design with IP55 protection for various
harsh environment applications. It can deliver up to DC 60kW and AC 22kW and the charging voltage ranges from 150V to
1000Vdc.

Main Features
  • CCS2/CHAdeMO
  • AC Type 2 charging cable support
  • CE, RED, CB and TUV US/CA certification
  • IP55 design with high protection and high reliability for harsh environment
  • Wall mounted, pedestal installation with cable retractor and light bar
  • OCPP 1.6 J support with update firmware to 2.0, P&C, smart charge and power management support
  • Power can transfer between the two DC charging cables
  • Simultaneous charge of the two DC charging cables and AC charging cable
  • 60kW DC charging capacity, charging voltage from 150V to 1000V and Optional 22 kW AC Type 2 charging cable
  • User friendly interface with tempered glass protective 7" TFT capacitive touch screen LCD
  • Multiple charging modes: Auto basis, Time basis, Amount basis, Energy basis, SOC basis
  • LAN and LTE wireless support, OTA support, RFID authorization, Credit card reader and Mobile App payment support
